Dinnteco Lightning Prevention and Protection Systems

It definitely prevents lightning strikes within a radius of 200 meters and insures and secures you with an insurance policy of 6 million EUR. Since the system is designed correctly, the protection diameter reaches 350 - 400 meters and significantly minimizes the indirect effects of lightning that may occur.

İletişime Geçin

Dinnteco Lightning Off - Lightning Prevention System

DDCE (Dinnteco Deionizer of Electrostatic Charge ) , DINNTECO-100 Plus is an atmospheric discharge prevention product that prevents lightning from falling on the structure it protects and its surroundings. It definitely prevents lightning strikes within a radius of 200 meters and insures and secures you with an insurance policy of 6 million EUR. Since the system is designed correctly, the protection diameter reaches 350 - 400 meters and significantly minimizes the indirect effects of lightning that may occur. The loads between the air and the earth are neutralized by constantly changing the load in the DINNTECO-100 Plus main body. Thus, the formation of the potential difference necessary for the formation of lightning is prevented, lightning does not strike.

Dinnteco || Product Group

It is the process of electric charge, which is formed by the evaporation of water in the atmosphere, and the particles that are small enough to fly in the air collide with each other with the effect of the wind. Water particles multiply and form a cloud, and when they rise in the atmosphere to the temperature zone / altitude below "0", they begin to freeze, but they cannot completely freeze and come back to the temperature zone / height above "0" with the effect of the wind, and the frozen parts are thawed and again with the effect of the wind. When they go to the temperature zone / height below “0” degrees, they start to freeze, this process is constantly repeated in this way and comes in the form of ice drops, they are charged with different electrical charges by colliding with each other. This process continues in this way, and as the cloud grows, the electrical charge within the cloud also increases. As the load increases, “+” and “-” loaded parts are formed in the cloud.

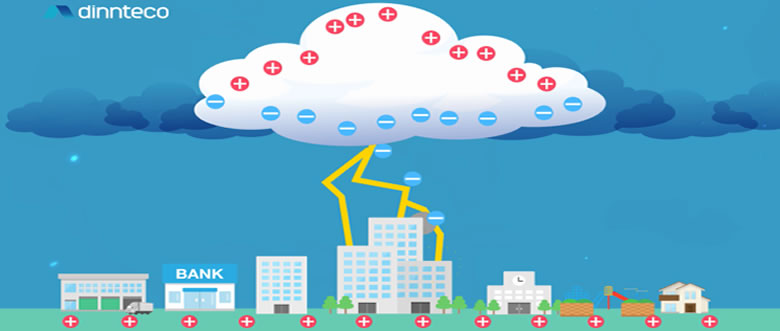

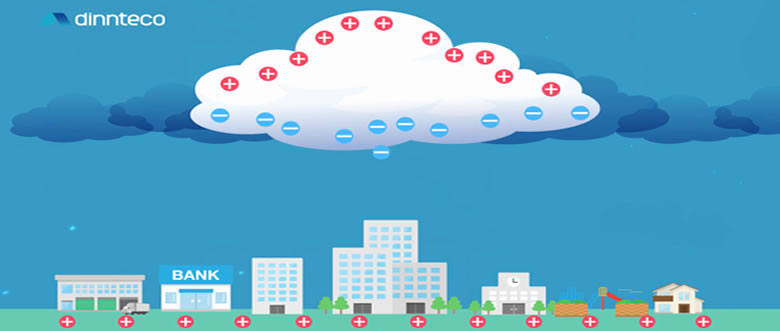

The opposite of the charge formed in the lower region of the cloud also occurs on the earth. They are mostly positive at the top of the cloud and negative most of the time at the bottom. This charge difference leads to millions of volts of electrical voltage, and when it gets too high, it suddenly discharges.

The violent discharge of this electric charge is called lightning. Lightning currents generated during lightning discharge can reach currents of 200 kA and above. Especially as a result of climate change and increased evaporation, lightning strikes became more frequent and intensified. Now, lightning strikes of 400 kA and above are seen in our country. Call us for more information.
How Can I Protect From Lightning?
The way to provide the most effective and definitive protection is to use the Dinnteco Lightning Suppression System. Because the use of Dinnteco prevents lightning from falling on the structure, if it is installed at a height of 26 meters, it prevents lightning from falling into an area up to 200 meters in diameter. In addition, Dinnteco insures you against possible lightning damage with 6 million EURO.

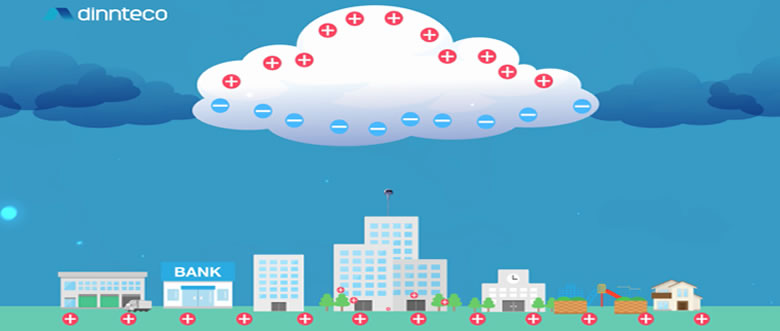

With Dinnteco, the electric field existing in the atmosphere is constantly balanced. In this way, it does not fall into the lightning protection area again.
Do lightning rods and Dinnteco work in the same way?
The work of the lightning rod is not the same as the work of Dinnteco. It is assumed that lightning will fall on the lightning rod, and it is transmitted to the grounding system in case of falling lightning and is damped. However, it is not certain that lightning will strike the lightning rod, often lightning strikes at a very different point instead of the lightning rod, causing damage or causing a fire. Even if lightning strikes the lightning rod, there is always a risk of fire, because the heat generated during a lightning strike reaches 25,000°C and no metal can withstand this temperature. In the use of Dinnteco, lightning is eliminated, so there is no risk of fire. In addition, each Dinnteco application is covered by a product liability insurance of 6 million EUR for 5 years, provided that annual controls are carried out. For more information, we recommend watching our Dinnteco Promotional videos. or on our youtube channel We recommend you to watch the videos on our Youtube channel.
Does the mesh system (faraday cage ***) and Dinnteco work in the same way?
The work of the network system (faraday cage ***) and the work of Dinnteco are not the same. It is assumed that lightning will strike on the network system, in case of falling lightning, it is transmitted to the grounding system with the network structure and is damped. However, as with lightning rods, it is not certain that lightning will strike the network system, often lightning strikes a very different point or starts a fire. Even if lightning strikes the network system, there is always a risk of fire, because the heat generated during a lightning strike reaches 25,000°C and no metal can withstand this temperature. In the use of Dinnteco, lightning is eliminated, so there is no risk of fire. In addition, each Dinnteco application is covered by a product liability insurance of 6 million EUR for 5 years, provided that annual controls are carried out. ***The term Faraday cage is used for lightning protection net system in our country, but faraday cage has a completely different structure. If I use Dinnteco, do I need to use a surge arrester?
If Dinnteco is used, surge arresters must be used to protect against current and voltage surges caused by lightning that will fall outside the protection area. However, the amount of surge arrester to be used is significantly reduced. Protecting the energy part with a K-Surge surge arrester is sufficient in most applications, since lightning strikes will predominantly come to energy inputs and ground / neutral. From this point of view, Dinnteco applications are always more economical, because you provide absolute protection and use less lightning protection elements with less labor. You keep less spare stock and less inspection and maintenance is required. When you apply Dinnteco, you also have an Insurance and you also ensure life safety.
When comparing the cost difference between the network system and Dinnteco, which one is more economically viable?
Although it varies according to the structure to be protected, when you add the network system, surge arrester and labor costs made according to the regulations, the total cost you get will be 200 units in most applications, a total of 120 - 140 units in solutions made with Dinnteco and K-Surge surge arresters. In large, bulky projects with a high lightning protection class, this difference decreases to 100 units when you save on mechanical structure, grounding and labor. When you apply Dinnteco, you also have an Insurance and you also ensure life safety.
Does Dinnteco comply with IEC 62305 Standard?
Yes, Dinnteco complies with IEC 62305. We can share relevant test reports upon request.
Do I need to do a risk analysis if I use Dinnteco?
No, it's not necessary. Before the design of the lightning protection system, a risk analysis is required to determine the lightning protection class according to IEC 62305. However, if Dinnteco is used, lightning does not strike. Therefore, you do not need to do a risk analysis. At the same time, it provides great convenience in renewing / updating systems without risk analysis or incomplete systems. ***The risk analysis is often done incorrectly in determining the protection class for lightning protection design, because the data used is incomplete, out of date and subjective results are obtained. This directly affects costs.
Can I apply Dinnteco to an existing lightning rod / mesh system?
Of course you can apply. Before the application, lightning rod / network system connections, installation and grounding system should be checked. The results of the controls for the insurance policy are recorded on the form and if there is no problem in the installation as a result of our controls, it can be assembled immediately.
Can we get support from you for Lightning Protection Design with Dinnetco?
Of course, if you contact us during the design phase, we will assist you in making the right design. If we want the entire lightning protection design to be done by us, we can do it for a fee.
Please click the link to download our Lightning What is Documentation ....

Protection system against atmospheric discharges and electromagnetic protection that prevents lightning from striking the structure it protects. The shielding design is based on the installation of the DDCE 50 Plus in areas where waves may meet or interference may be generated.
In this case, the protection radius of the DDCE 50 plus can be 50 m, provided that regulatory requirements are met. The DDCE 50 plus is recommended for installation in any floor structure.

Protection system against atmospheric discharges and electromagnetic protection that prevents lightning from striking the structure it protects. Unique and effective system for shielding external electromagnetic pulses (absorbs 60% to 90% of PEM, minimizing damage by indirect effects). In this case, the protection radius of the DDCE 100 Plus can be 100 m, provided that the legal requirements are met. It is recommended to install the DDCE 100 plus on any floor structure.

A passive system that drags electrostatic currents ashore to catch them in time. Its working principle is based on balancing or balancing the variable electric field in its environment by preventing the formation of an upward tracer in DDCE Marine and the sea vessel it protects. DDCE Marine is recommended for all offshore vessels.

Protection system against atmospheric discharges and electromagnetic protection that prevents lightning from striking the structure it protects. Unique and effective system for shielding external electromagnetic pulses (absorbs 60% to 90% of PEM, minimizing damage by indirect effects). In this case, the protection radius of the DDCE chemical can be 100 m, provided that regulatory requirements are met. DDCE chemical is recommended for any installation in salty and corrosive environments.

Protection system against atmospheric discharges and electromagnetic shielding that prevents lightning from hitting the structure it protects. Unique and effective system for shielding external electromagnetic pulses (absorbs 60% to 90% of PEM, minimizing damage from indirect effects). In this case, the protection radius of the DDCE 100 plus UL can also be 100 m, provided that regulatory requirements are met.

The DNNFT model dinfil earth filter is a high reactance filter that protects against high frequency ground induced surges from atmospheric discharges, electromagnetic pulses and other sources. Unique and effective system for protection of high-frequency surges originating from the ground in all types of structures. It is recommended to install Dinfil in all kinds of structures.

The DNNF model dinco connector is a shielding element that minimizes high frequency induced surges derived from atmospheric discharges, electromagnetic pulses and other sources that may appear in the downstream cable of DDCE. Its installation is recommended in all structures where such fluctuation is not important.

Contact for Lightning Prevention system and solutions.
